Electronic Ballast QUICKTRONIC INTELLIGENT QTi 1x 35/49/80 GII ND, IP20, 220-240 AC/DC
OSRAM
You do not have the permission to see the prices
Shipping time: 5-7 days
Product no.: OS4008321383372
EAN: 4008321383372
In stock: 41

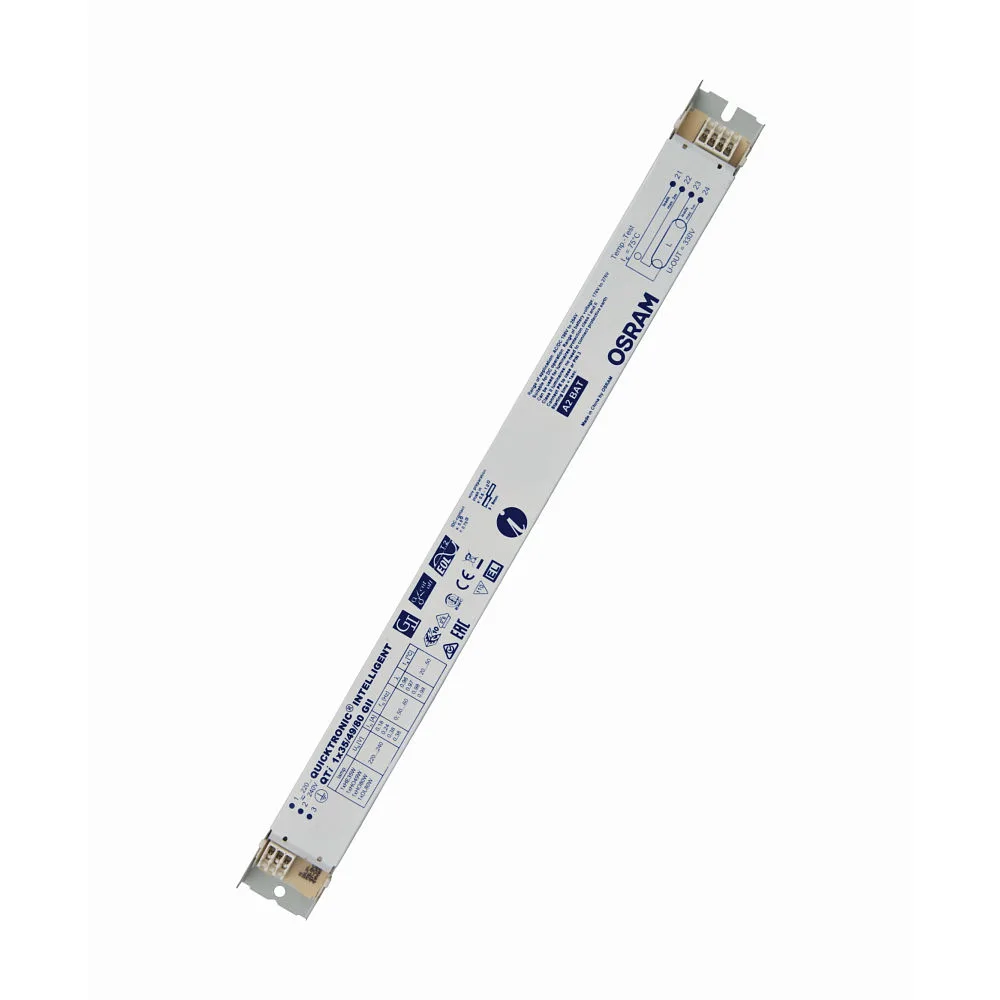

EVG QUICKTRONIC INTELLIGENT QTi 1x 35/49/80 GII ND
The EVG QUICKTRONIC INTELLIGENT QTi 1x 35/49/80 GII ND is an electronic ballast for fluorescent lamps with article number OS4008321383372. This product is ideal for indoor use and has an operating voltage of 220-240V. The dimensions are 36x3x2.1 cm and the weight is 0.24kg. It is a non-dimmable ballast with an IP protection rating of IP20.
Technical Details
Number of lamps: 1 Protection class: 2 Start time: 1s Tc (°C): 75°C Ambient temperature: -20 - +50°C Protection in case of over 110° in case of failure: yes Lamps included: no Usage area: Suitable only for indoor use Quantity: 1 piece Dimmable: no
Further Information
AC/DC compatible. High tolerance of input voltage. Input voltage AC: 198-264V, Input voltage DC: 176-276V Lifetime: > 100,000 h (at T = 65 °C at Tc) Lamp start with optimal coil preheating Perfect lamp warm start for applications with motion sensors Highest energy efficiency through cut-off technology (as of spring 2020) Energy Efficiency Index EEI: A2 BAT Automatic safety shutdown in case of lamp defect and at end of lamp life (EoL T.2) Safety: according to EN 61347-2-3 Lamp operation: according to EN 60929 Suitable for emergency lighting systems according to EN 50172 / DIN VDE 0108-100 (DC operation) Application examples: Industry, large offices, corridors, storage rooms, public buildings, sports halls and factories, light bands Suitable for luminaires of protection classes I and II
Energy Efficiency and Safety
The EVG QUICKTRONIC INTELLIGENT QTi 1x 35/49/80 GII ND offers high energy efficiency through cut-off technology. With an Energy Efficiency Index of A2 BAT and automatic safety shutdown in case of lamp defect and at end of lamp life (EoL T.2), this ballast is not only efficient, but also safe to use. It complies with safety standards according to EN 61347-2-3 and EN 60929 and is suitable for emergency lighting systems according to EN 50172 / DIN VDE 0108-100 (DC operation).
Applications
The EVG QUICKTRONIC INTELLIGENT QTi 1x 35/49/80 GII ND is versatile and can be used in various settings such as industry, large offices, corridors, storage rooms, public buildings, sports halls, factories, and light bands. With high tolerance of input voltage and optimal coil preheating, this ballast is a reliable solution for various lighting requirements.
