luminaire head M-POL M LOUVER DALI controllable IP65, anthracite dimmable

SLV


E
Product data sheet

You do not have the permission to see the prices

Shipping time: in stock

Product no.: 1006392
EAN: 4024163266482
In stock



SLV luminaire head M-POL M LOUVER DALI controllable IP65, anthracite dimmable

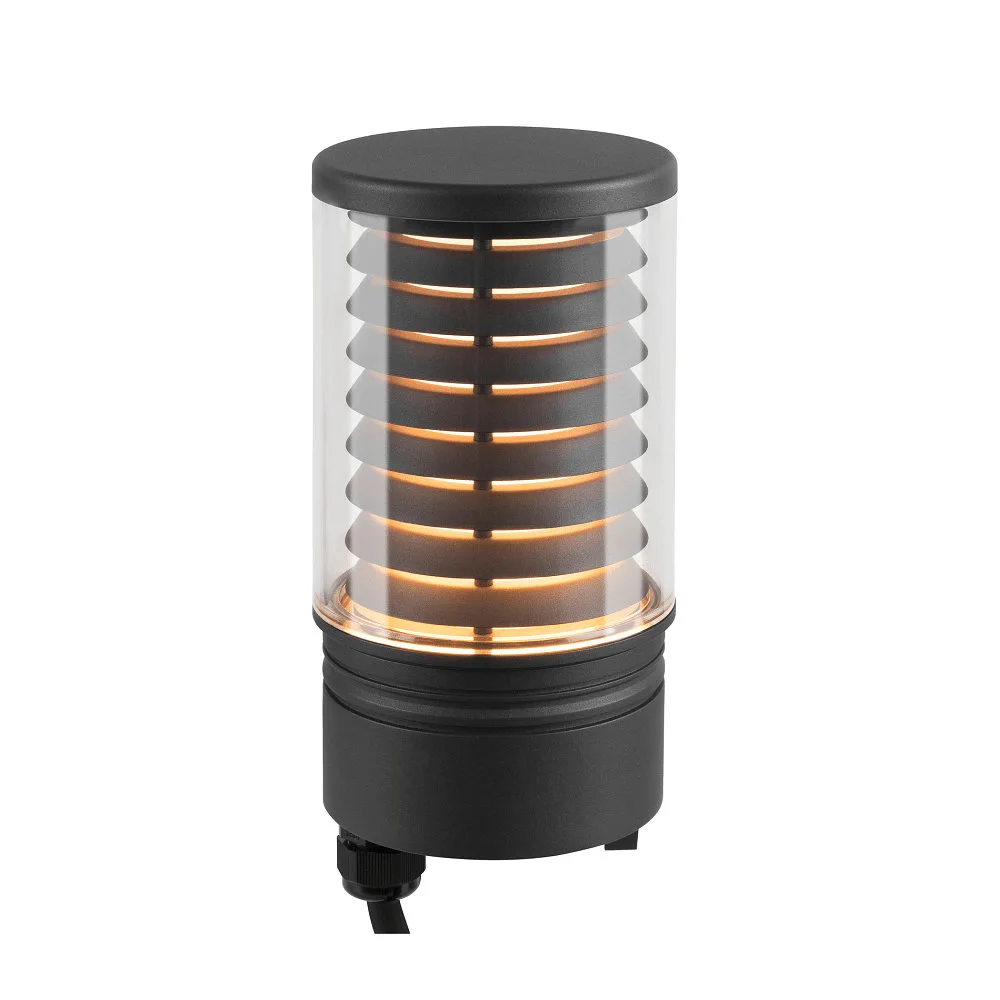

LED luminaire head M-POL M LOUVER, IP65 IK10, 19W, 2700/3000K, 350-370lm, CRI90, DALI dimmable, anthracite

The LED luminaire head M-POL M LOUVER is a high-quality luminaire head for sophisticated outdoor lighting design. With a power consumption of 19W and a luminous flux of 350-370lm, it provides efficient lighting. Thanks to the high color rendering index of 90Ra, colors are reproduced true to nature.

Versatile applications and high-quality craftsmanship

Due to its sturdy construction of aluminum and glass, the LED luminaire head M-POL M LOUVER is particularly durable and maintenance-free. It has protection class 1 and offers protection against moisture and foreign objects with IP65 protection class. Furthermore, it is vandal-proof with IK10 classification.

Flexibility and easy installation

The luminaire head can be easily attached to the luminaire base and is compatible with various accessories such as drivers and connection boxes. Through the possibility of through-wiring, the installation of multiple luminaires in a row is also possible. The DALI dimmability allows for individual adjustment of brightness.

Energy efficiency and environmentally friendly lighting

With an energy efficiency class E and an energy consumption of 19kWh/1,000h, the LED luminaire head M-POL M LOUVER is an environmentally friendly lighting solution. The integrated LED has an average lamp lifespan of 50,000 hours, ensuring long-term use.

Individual design options and optimal solutions

The LED luminaire head M-POL M LOUVER is available in different sizes, designs, and control options. Choose from a diverse selection of luminaire heads and diffusers for the optimal solution for your project. With the possibility of individual customization and high-quality craftsmanship, this luminaire head is the ideal choice for your outdoor lighting.

Article number:
1006392
Purchasing quantity:
1 piece
Brand:
SLV
Energy efficiency category:
E
EPREL No:
1370514
Product type:
luminaire head
Energy consumption:
19 kWh/1.000 h
Manufacturer:
SLV
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI
Lamp shape:
round
Power frequency:
50/60 Hz
Power consumption:
19 W
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Voltage:
open cable end
Light emission:
direct and indirect
Beam direction:
all around 360°
Light flux:
350-370 lm
Nominal current:
500 mA

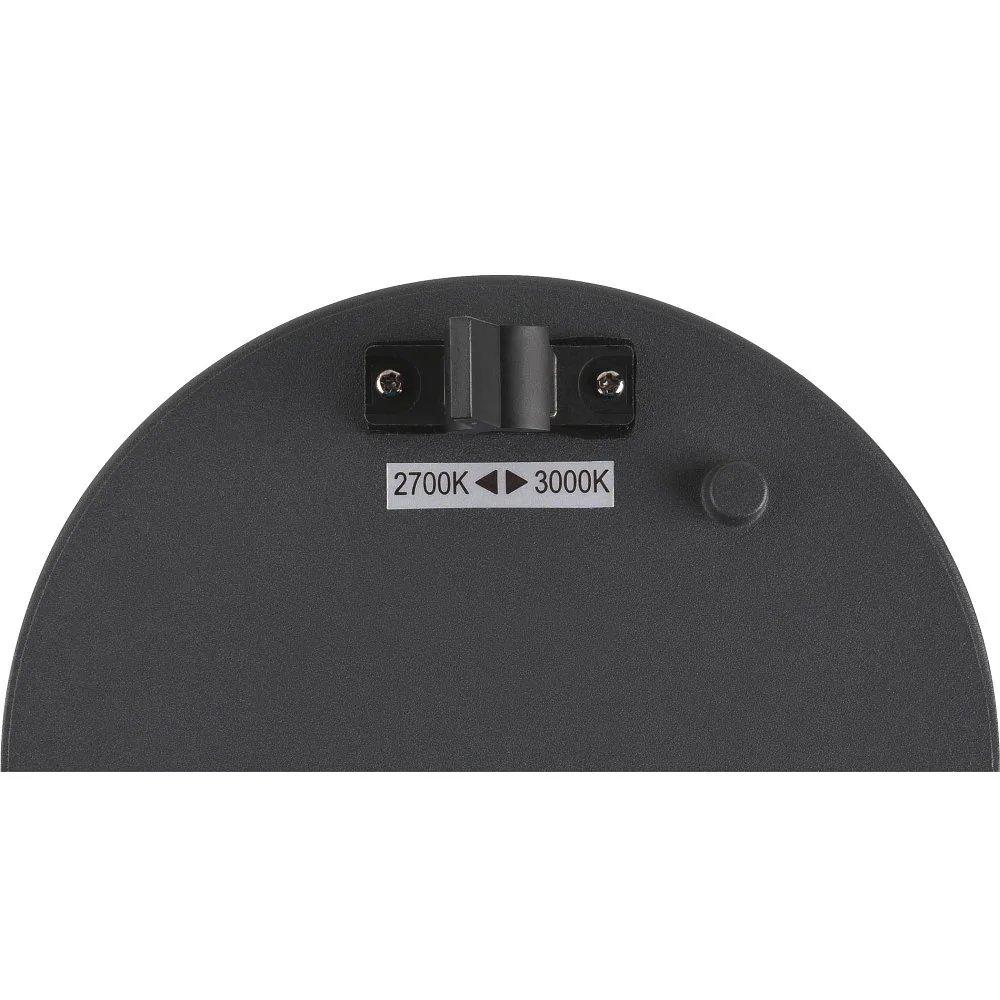

Colour temperature:
2700 | 3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
90 Ra
Admissible burning position:
53
Colour:
anthracite
Glass color:
clear
opal
Material:
aluminium
Throughwiring (installation of multiple luminaires in a row) is possible:
yes

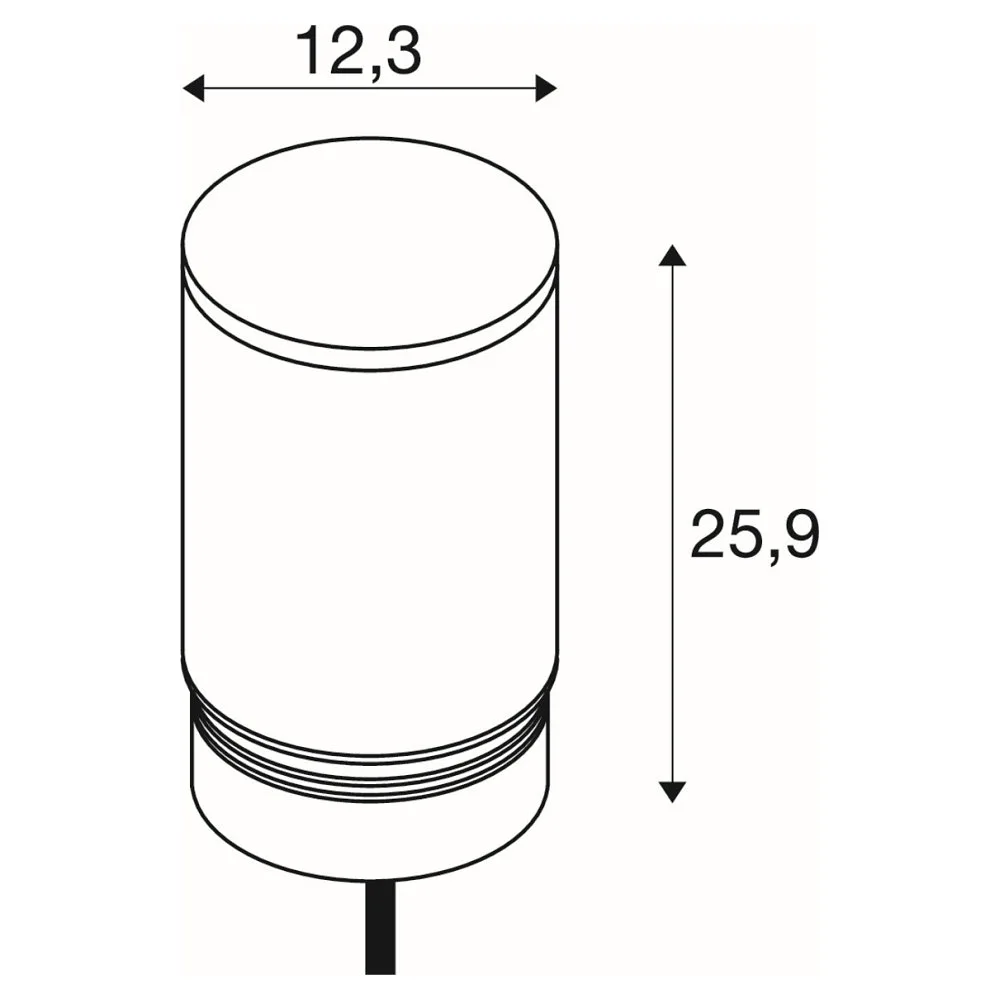

Dimension:
Ø∕ H: 12.3/25.9 cm
Weight:
1.81 kg
Length of connection lead:
90 cm
Field of application:
floor
Protection class:
1
IP-protection class:
IP65
Application area:
suitable for outdoor use
Additional information:
Very good colour rendering.
Light emission unidirectional
Accessories:
driver incl
connection box excl
concrete anchor excl
controller excl
dimmer excl
socket excl
ambient temperature:
-20 - 35°C
